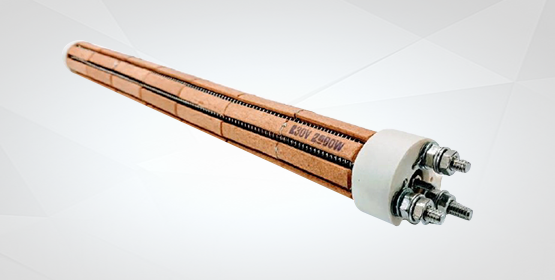

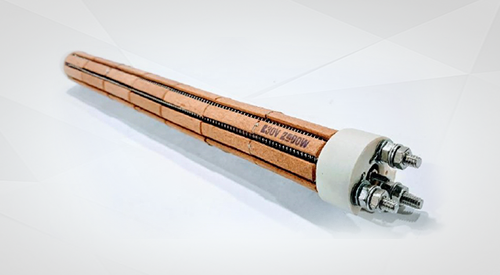

PHS Bobbin heater is constructed using several refractory ceramic blocks assembled together to the required length.
Technical Details
Operating temperature
up to 750°C
Heating Element
Kanthal, Ni-Cr (80:20)
Construction
Customized Bobbin
Thermo-well tube as per the application
The Nichrome wire heating element is inserted into the ceramic blocks, with a terminal block at one end.

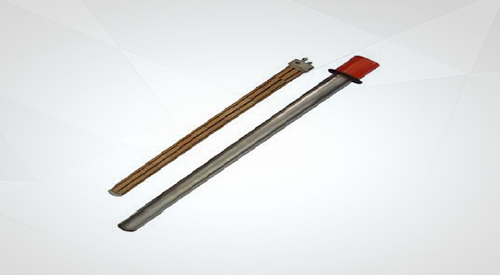

This bobbin assembly is then inserted into a pre-assembled special protection tube, when used in liquid immersion and gas application.
However, bobbin heaters can also be used in direct air-heating application without the protection tube.
Applications
Furnace oil heating application in steel industries and other process industries
Low temperature heat treatment furnaces in automotive industries.
Advantages
Offers a large area to heat liquids or semi-solid materials like wax, fats, oil and bitumen.
Suitable for indirect heating of gases and liquids, where it is inserted into a pocket or protection tube in the process tank, wherein, it can be repaired or replaced without draining the process tank.
Wide range of lengths, voltages and power is available to meet customers’ specific requirement.
All ceramic bobbin heaters are custom-made, and the power ratings are according to the length of the ceramic bobbins
Simple and low-cost installation
Ease of maintenance and repair
Energy efficient as 100% of heat generated is within the solution
