Bundle Rod Heater
PHS make Bundle Rod heater consists of circular ceramic disc that hold the heating elements. In combination with the radiant tubes. The element can be providing in ferritic alloys up to 1200° C and Nickel Chromium alloy up to 1000°C.
Technical Details
| Power | Max 70kW |
|---|---|
| Watt Density | up-to 7 w/cm2 |
| Top Flange | Syndhaniya Fiber, Duratek |
| Heating Element Grade | Kanthal A-1, APM, PRM, Ni-Cr 80/20 |
|---|---|
| Heater Parameters | Customized - Power Rating, Voltage Resistance, Length, Diameter |
Construction
- Direct heating element wire : Kanthal Heating Element (A1, D, Ni-Cr)
- Ceramic Disc : For hold the heating element & insulation
- Fiber Disc : For holds the terminal rod and prevent heat loss
- Centre Rod : For alignment & to hold the final assembly
Applications
- Primary aluminium holding and melting furnace
- Galvanizing furnace in steel industries
- Heat treatment furnace in automotive industries
- Annealing furnace
- Carburizing furnace
Advantages
- Reduces carbon dioxide emissions
- Minimized environmental impact
- Inside radiant tubes or as standalone elements
- Higher output
- Low cost
- Uninterrupted operation

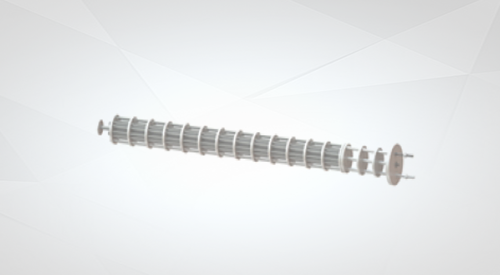

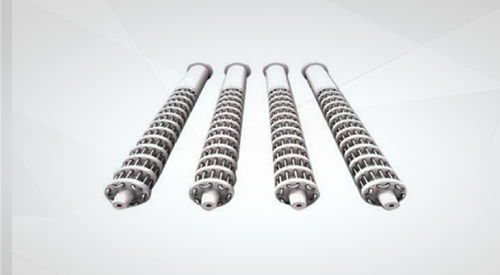

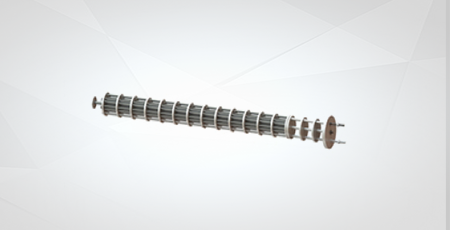

Snapshots
